    3HP 5.5KW 59.92 M1 - 180 with Brake R97DRN132S4BE11HF/2W torque 2150Nm hard surface reducer

    ▶▶▶Description:

    Helical gearmotors
    Make use of the advantages of the compact combination of powerful helical gear units and AC motors. Our helical gearmotors of the series R..DR.. set themselves apart with their finely stepped gear unit ratios and variety.

    Covering 6 specifications of single-stage reducers and 14 specifications of 2-stage and 3-stage reducers, the R series of helical gear reduction motors perfectly meet the requirements of power and installation space.



    ▶▶▶Features


    RX series (single-stage)
    •Highly efficient helical gear units in 6 sizes
    •High output speed, up to 830 Nm
    •Gear unit ratios up to i = 8.65
    •Available in foot or flange-mounted design

    R series (multi-stage)
    •Optimum ratio between performance and space requirements thanks to 15 sizes
    •Finely stepped gear unit ratios up to i = 289.74; or i = 27,001 for double gear units
    •Available in foot or flange-mounted design
    •Also available with reduced backlash


    ▶▶▶Production details

    Catalog designationR97DRN132S4BE11HF/2W
    ProductHelical gearmotors R..DRN.. (IE3)
    Product data
    Rated motor speed [1/min]1461
    Output speed [1/min]24
    Overall gear ratio59.92
    Output torque [Nm]2150
    Service factor SEW-FB1.40
    Mounting positionM1
    Base / top coat7031 Blue gray (51370310)
    Position of connector/terminal box [°]180
    Cable entry/connector positionX
    Output shaft [mm]60x120
    Design typeFoot-mounted design
    Permitted output overhung load with n=1400 [N]24100
    Lubricant quantity 1st gear unit [Liter]4.6
    Motor power [kW]5.5
    Duration factorS1-100%
    Efficiency classIE3
    Efficiency (50/75/100% Pn) [%]90.59 / 90.64 / 89.6
    CE markYes
    Motor voltage [V]230/400
    Wiring diagramR13
    Frequency [Hz]50
    Rated current [A]18.2 / 10.5
    Cos Phi0.84
    Thermal class155(F)
    Motor protection typeIP55
    Design requirementEurope (CE)

    ▶▶▶Areas of application


    RX series (single-stage)
    ◆Roller conveyors ◆Belt conveyors ◆Chain conveyors

    R series (two-stage and three-stage)
    ◆Rotary tables ◆Pumps and fans ◆Waste water and sewage treatment plants
    ◆Fans ◆ Roller conveyors ◆ Belt conveyors
    ◆Chain conveyors ◆Corner transfer units


    ▶▶▶FAQ

    Q: Can you print other colors?
    A:Yes. Customized color can be printed on the gear motor according to your requirements.


    Q: Can we buy 1 pc of each item for quality testing?
    A: Yes, we are glad to accept trial order for quality testing.


    Q:How to choose a gearbox which meets your requirement?
    A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
    the technical information of required output torque, output speed and motor parameter etc.


    Q: What information shall we give before placing a purchase order?
    A:a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
    b) Housing color.
    c) Purchase quantity.
    d) Other special requirements.


    Q: Is that factory price?
    A:Yes. We assure you all prices are based on factory.

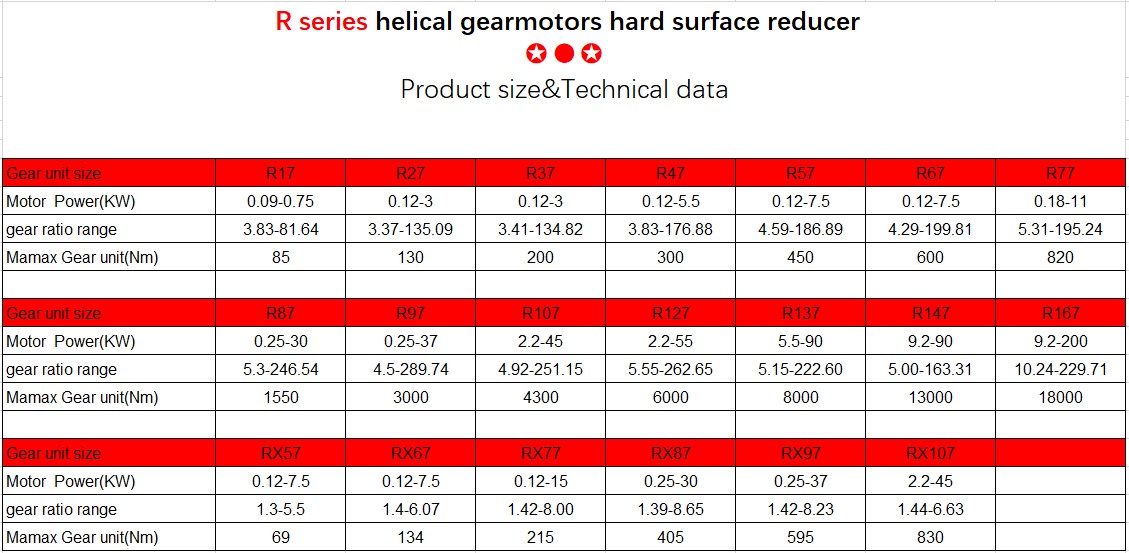

    ▶▶▶ SEW reducer R series helical gear reducer

    Gear transmission efficiency up to 98%, low vibration, low noise

    Solid shaft, flange or footing mounting, can be used as the input stage part of the multi-stage reduction box

    out speed (rpm): 0.05rpm - 1829rpm
    Torque range(Nm/Power range(KW): 50Nm - 18,000 Nm/ 0.09KW - 160 kW

    SIZE:R37,R47,R57,R67,R77,R87,R97,R107,R137,R147,R167

    RS37,RS47,RS57,RS67,RS77,RS87,RS97,RS107,RS137,RS147,RS167

    RF37,RF47,RF57,RF67,RF77,RF87,RF97,RF107,RF137,RF147,RF167

    RX37,RX47,RX57,RX67,RX77,RX87,RX97,RX107

    RXF37,RXF47,RXF57,RXF67,RXF77,RXF87,RXF97,RXF107
