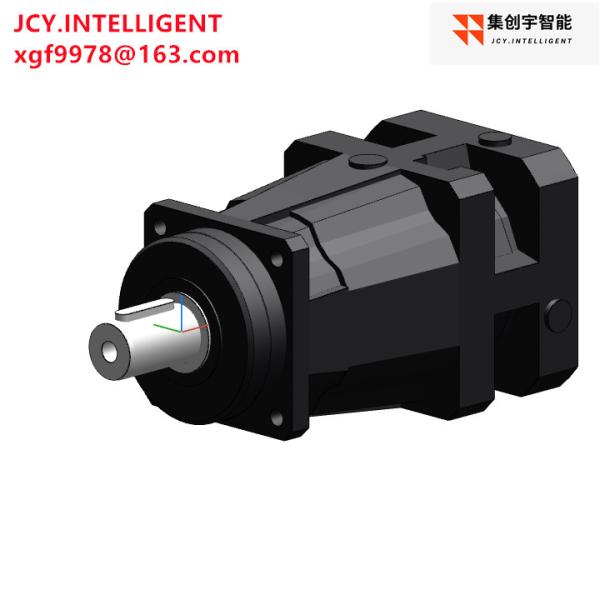

PS.F/PS.C series planetary servo gear units

The PS.F planetary servo gear units are designed for nominal torques of 25 Nm to 3,000 Nm; the PS.C series is designed for nominal torques of 30 Nm to 320 Nm.

All gear ratios from i = 3 to i = 100 are integers and finely stepped. This means that the servo gear units are particularly suitable for use with controllers that require integer resolution ratios.

▶▶▶Description:

PS.F/PS.C series planetary servo gear units
Our servo gear units are highly precise, powerful and extremely compact. They deliver high torques at high speeds while absorbing high overhung loads. Their extremely high reliability makes them the ideal unit!

High speeds and torques combined with precision and efficiency: Our two series of compact planetary servo gear units offer you a huge number of possible solutions, as well as a range of motor mounting options with the EPH motor adapters for PS.F and the ECH adapters for PS.C.

High speeds and torques combined with precision and efficiency: Our two series of compact planetary servo gear units offer you a huge number of possible solutions, as well as a range of motor mounting options with the EPH motor adapters for PS.F and the ECH adapters for PS.C.

With consistently low rotational clearance, high torsional rigidity and a high level of efficiency, these highly precise and extremely powerful servo gear units constitute an optimal basis for a variety of servo drives.

The PS.F planetary servo gear units are designed for nominal torques of 25 Nm to 3,000 Nm; the PS.C series is designed for nominal torques of 30 Nm to 320 Nm.

All gear ratios from i = 3 to i = 100 are integers and finely stepped. This means that the servo gear units are particularly suitable for use with controllers that require integer resolution ratios.

Only half the solution without a motor? Then take advantage of our modular concept and combine the servo gear units of the BS.F and PS.C series with the dynamic servomotor of your choice.

▶▶▶Production details

▶▶▶Features

◆High flexibility
•with direct motor mounting because there is no longer any need for an adapter with clamp coupling

◆Incredible performance
•thanks to the high operating speeds and efficiency levels.

◆High reliability
•due to the wear-free gearing and consistently low rotational clearance.

▶▶▶FAQ

Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according to your requirements.

Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.

Q:How to choose a gearbox which meets your requirement?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.

Q: What information shall we give before placing a purchase order?
A:a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
