▶▶▶Description:

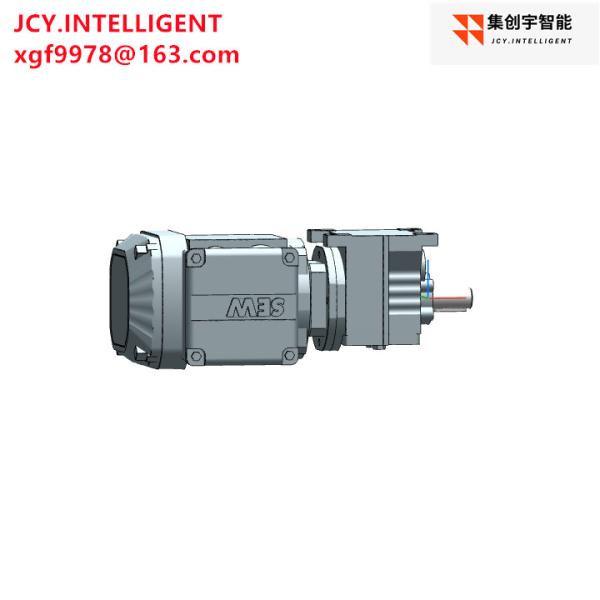

Helical gearmotors
Covering 6 specifications of single-stage reducers and 14 specifications of 2-stage and 3-stage reducers, the R series of helical gear reduction motors perfectly meet the requirements of power and installation space.

▶▶▶Features

RX series (single-stage)
•Highly efficient helical gear units in 6 sizes
•High output speed, up to 830 Nm
•Gear unit ratios up to i = 8.65
•Available in foot or flange-mounted design





Product data:

▶▶▶Areas of application
RX series (single-stage)
◆Roller conveyors ◆Belt conveyors ◆Chain conveyors
R series (two-stage and three-stage)
◆Rotary tables ◆Pumps and fans ◆Waste water and sewage treatment plants
◆Fans ◆ Roller conveyors ◆ Belt conveyors
◆Chain conveyors ◆Corner transfer units


▶▶▶ SEW reducer R series helical gear reducer

Gear transmission efficiency up to 98%, low vibration, low noise
Solid shaft, flange or footing mounting, can be used as the input stage part of the multi-stage reduction box

out speed (rpm): 0.05rpm - 1829rpm
Torque range(Nm)/Power range(KW): 50Nm - 18,000 Nm/ 0.09KW - 160 kW


SIZE:RXF37,RXF47,RXF57,RXF67,RXF77,RXF87,RXF97,RXF107
RX37,RX47,RX57,RX67,RX77,RX87,RX97,RX107


▶▶▶FAQ

Q:How to choose a gearbox which meets your requirement?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
