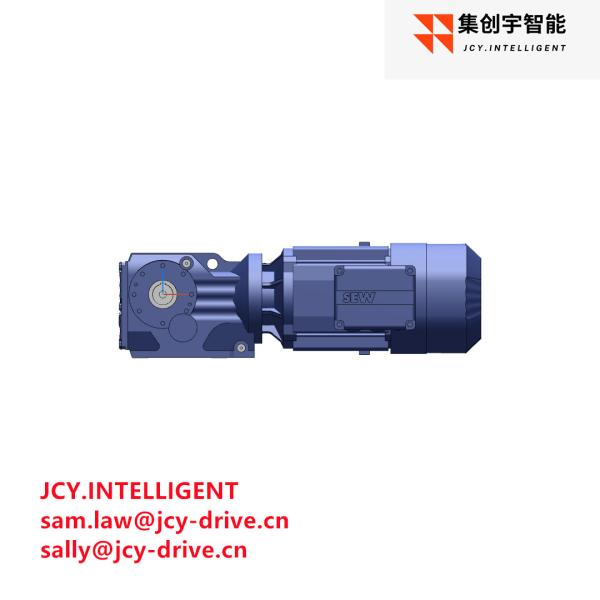

    Helical Bevel Drive Gear Motor Brake 230v 2.2KW M5A 12.19 35mm Shaft

    Ask Lasest Price
    Brand Name : SEW
    Model Number : 12.19
    Certification : CE/3C
    Price : Discussed
    Payment Terms : T/T, Western Union
    Supply Ability : 1000000 pieces/year
    Delivery Time : 3-5 WORK DAYS
    • Product Details
    • Company Profile

    Helical Bevel Drive Gear Motor Brake 230v 2.2KW M5A 12.19 35mm Shaft

    ▶▶▶Description:

    Helical-bevel gearmotorsThe compact design of all our gear units is most obvious in our helical-bevel gear units. This property is particularly interesting, for example, for machine applications with limited space available. Here, you need powerful drive technology with a compact design. This is just the right environment for our helical-bevel gear units with a torque range from 80 to 50,000 Nm.

    K series Helical-bevel gearmotors
    ✪●✪

    Product size&Technical data
    Gear unit sizeK37K47K57K67K77K87
    Motor Power(KW)0.12-30.12-30.12-7.50.12-7.50.12-150.25-30
    gear ratio range3.98-106.384.64-131.874.69-145.145.2-144.797.24-192.187.21-197.37
    Mamax Gear unit(Nm)20040060082015502700

    Gear unit sizeK97K107K127K157K167K187
    Motor Power(KW)0.75-372.2-455.5-909.2-2009.2-2009.2-200
    gear ratio range7.54-176.057.35-143.478.68-146.0712.65-150.4117.34-164.5017.18-179.86
    Mamax Gear unit(Nm)4300800013000200003500053000

    Gear unit sizeK19K29K39K49
    Motor Power(KW)0.12 - 1.10.12 - 2.20.12 - 40.12 - 7.5
    gear ratio range4.5 - 58.683.19 - 71.932.81 - 58.244.00 - 75.20
    Mamax Gear unit(Nm)80130300500



    ▶▶▶Features

    ☆Helical-bevel gear units (two and three stages)
    •High efficiency
    •Gearing with high fatigue strength
    •Long, maintenance-free service life
    •Can be combined with our complete motor portfolio
    ☆Sizes K..37 to K..187 (three stages)
    •Double gear units for very low output speeds also available
    •Reduced backlash variant
    •Available variants:
    •Foot- or flange-mounted
    •B5 or B14 flange-mounted
    •Solid or hollow shaft
    •Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®


    Catalog designationKA47DRN100LS4BE5HF
    ProductBevel-helical gearmotors K..DRN.. (IE3)
    Rated motor speed [1/min]1450
    Output speed [1/min]119
    Overall gear ratio12.19
    Output torque [Nm]176
    Service factor SEW-FB2.00
    Mounting positionM5A


    ▶▶▶ SEW K series Helical-bevel gearmotors


    SIZE:K37,K47,K57,K67,K77,K87,K97,K107,K127,K157,K167,K187
    KS37,KS47,KS57,KS67,KS77,KS87,KS97,KS107,KS127,KS157,KS167,KS187
    KA37,KA47,KA57,KA67,KA77,KA87,KA97,KA107,KA127KA157,KA167,KA187
    KF37,KF47,KF57,KF67,KF77,KF87,KF97,KF107,KF127,KF157,KF167,KF187
    KAF37,KAF47,KAF57,KAF67,KAF77,KAF87,KAF97,KAF107,KAF127,KAF157,KAF167,KAF187
    KAT37,KAT47,KAT57,KAT67,KAT77KAT87,KAT97,KAT107,KAT127,KAT157,KAT167,KAT187,KAZ37,KAZ47
    KAZ57,KAZ67,KAZ77,KAZ87,KAZ97,KAZ107,KAZ127,KAZ157,KAZ167,KAZ187


    ▶▶▶FAQ

    Q: What is the life span? what is the guarantee
    A:The lifespan of gear motor can reach 10-20 years depending on different working conditions .The guarantee time is
    one year after delivery.


    Q: What documents are available?
    A:A full range documents including structural drawings, packing list, installation manual and relative certificates
    can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.


    Q: Is it able to customized?
    A:yes, we could re-design and produce the gear motor as your requirements if the quantity is large.


    Q: Can you print other colors?
    A:Yes. Customized color can be printed on the gear motor according to your requirements.
