| Brand Name : | SEW |
| Model Number : | RM57DRN80M4 |
| Certification : | CE/3C |
| Price : | Discussed |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 1000000 pieces/year |
| Delivery Time : | 3-5 WORK DAYS |
▶▶▶Description:
Covering 6 specifications of single-stage reducers and 14 specifications of 2-stage and 3-stage reducers, the R series of helical gear reduction motors perfectly meet the requirements of power and installation space.
| R series helical gearmotors hard surface reducer ✪●✪ Product size&Technical data | |||||||
| Gear unit size | R17 | R27 | R37 | R47 | R57 | R67 | R77 |
| Motor Power(KW) | 0.09-0.75 | 0.12-3 | 0.12-3 | 0.12-5.5 | 0.12-7.5 | 0.12-7.5 | 0.18-11 |
| gear ratio range | 3.83-81.64 | 3.37-135.09 | 3.41-134.82 | 3.83-176.88 | 4.59-186.89 | 4.29-199.81 | 5.31-195.24 |
| Mamax Gear unit(Nm) | 85 | 130 | 200 | 300 | 450 | 600 | 820 |
| Gear unit size | R87 | R97 | R107 | R127 | R137 | R147 | R167 |
| Motor Power(KW) | 0.25-30 | 0.25-37 | 2.2-45 | 2.2-55 | 5.5-90 | 9.2-90 | 9.2-200 |
| gear ratio range | 5.3-246.54 | 4.5-289.74 | 4.92-251.15 | 5.55-262.65 | 5.15-222.60 | 5.00-163.31 | 10.24-229.71 |
| Mamax Gear unit(Nm) | 1550 | 3000 | 4300 | 6000 | 8000 | 13000 | 18000 |
| Gear unit size | RX57 | RX67 | RX77 | RX87 | RX97 | RX107 | |
| Motor Power(KW) | 0.12-7.5 | 0.12-7.5 | 0.12-15 | 0.25-30 | 0.25-37 | 2.2-45 | |
| gear ratio range | 1.3-5.5 | 1.4-6.07 | 1.42-8.00 | 1.39-8.65 | 1.42-8.23 | 1.44-6.63 | |
| Mamax Gear unit(Nm) | 69 | 134 | 215 | 405 | 595 | 830 | |
▶▶▶Features
RX series (single-stage)
•Highly efficient helical gear units in 6 sizes
•High output speed, up to 830 Nm
•Gear unit ratios up to i = 8.65
•Available in foot or flange-mounted design
R series (multi-stage)
•Optimum ratio between performance and space requirements thanks to
15 sizes
•Finely stepped gear unit ratios up to i = 289.74; or i = 27,001
for double gear units
•Available in foot or flange-mounted design
•Also available with reduced backlash

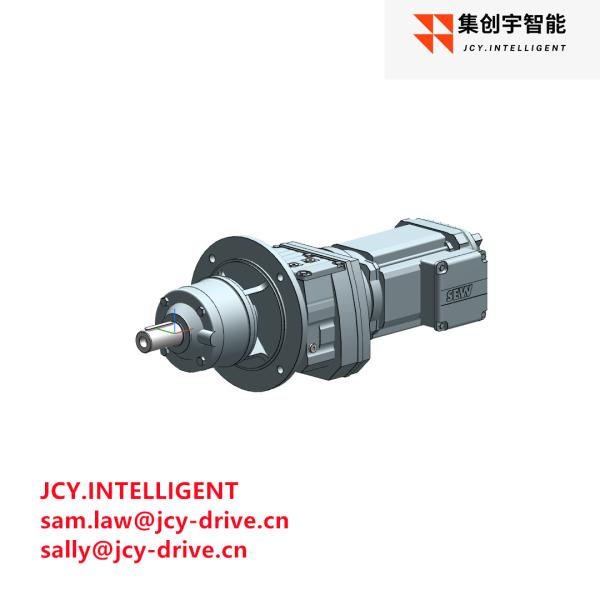

| Catalog designation | RM57DRN80M4 |
| Product | Helical gearmotors R..DRN.. (IE3) |
| Rated motor speed [1/min] | 1440 |
| Output speed [1/min] | 22 |
| Overall gear ratio | 64.85 |
| Output torque [Nm] | 320 |
| Service factor SEW-FB | 1.10 |
| Mounting position | M1 |
| Base / top coat | 7031 Blue gray (51370310) |
| Position of connector/terminal box [°] | 0 |
| Cable entry/connector position | X |
| Output shaft [mm] | 35x70 |
| Design type | B5 flange-mounted design with extended bearing hub. |
| Permitted output overhung load with n=1400 [N] | 4000 |
| Lubricant quantity 1st gear unit [Liter] | 0.8 |
| Flange diameter [mm] | 250 |
| Flange | 250 |
| Motor power [kW] | 0.75 |
| Duration factor | S1-100% |
| Efficiency class | GR3 |
| Efficiency (50/75/100% Pn) [%] | 80.7 / 82.9 / 82.9 |
| CE mark | YES |
| Motor voltage [V] | 230/400 |
| Wiring diagram | R13 |
| Frequency [Hz] | 50 |
| Rated current [A] | 3.05 / 1.75 |
| Cos Phi | 0.74 |
| Thermal class | 155(F) |
| Motor protection type | IP55 |
| Mass moments of inertia (referring to the input side) [10⁻⁴ kgm²] | 24.80 |
| Weight [kg] | 48.00 |
▶▶▶ SEW reducer R series helical gear reducer
Gear transmission efficiency up to 98%, low vibration, low noise
Solid shaft, flange or footing mounting, can be used as the input stage part of the multi-stage reduction box
out speed (rpm): 0.05rpm - 1829rpm
Torque range(Nm)/Power range(KW): 50Nm - 18,000 Nm/ 0.09KW - 160 kW
SIZE:R37,R47,R57,R67,R77,R87,R97,R107,R137,R147,R167
RS37,RS47,RS57,RS67,RS77,RS87,RS97,RS107,RS137,RS147,RS167
RF37,RF47,RF57,RF67,RF77,RF87,RF97,RF107,RF137,RF147,RF167
RX37,RX47,RX57,RX67,RX77,RX87,RX97,RX107
RXF37,RXF47,RXF57,RXF67,RXF77,RXF87,RXF97,RXF107
▶▶▶FAQ
Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according
to your requirements.
Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q:How to choose a gearbox which meets your requirement?
A:You can refer to our catalogue to choose the gearbox or we can
help to choose when you provide
the technical information of required output torque, output speed
and motor parameter etc.
Q: What information shall we give before placing a purchase order?
A:a) Type of the gearbox, ratio, input and output type, input
flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
Q: Is that factory price?
A:Yes. We assure you all prices are based on factory.
Q: What is the life span? what is the guarantee
A:The lifespan of gear motor can reach 10-20 years depending on
different working conditions .The guarantee time is
one year after delivery.
Q: What documents are available?
A:A full range documents including structural drawings, packing
list, installation manual and relative certificates
can be provided. Moreover, customs declaration is provided. We
provide one-stop service for you.
Q: Is it able to customized?
A:yes, we could re-design and produce the gear motor as your
requirements if the quantity is large.
|
|
