    Helical Three Phase Gear Motor Inline Speed Reducer Gearbox R27 DRN71M4/TF 130 Nm

    Ask Lasest Price
    Brand Name : SEW-EURODRIVE
    Model Number : R27 DRN71M4/TF/R27 DRS71S4/TF
    Certification : CE/3C
    Price : USD 100-2000 PER SET
    Payment Terms : T/T, Western Union
    Supply Ability : Discussed
    Delivery Time : 3-5 WORK DAYS
    • Product Details
    • Company Profile

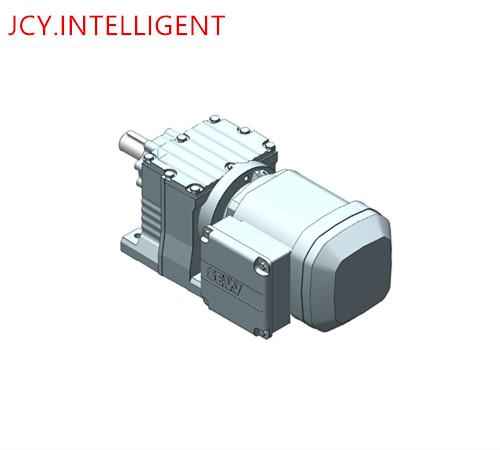

    Helical Three Phase Gear Motor Inline Speed Reducer Gearbox R27 DRN71M4/TF 130 Nm

    Our helical gearmotors of the series R..DR.. are universal all-rounders for many of your application areas. With their high efficiency, they are ideally suited for a multitude of applications. Thanks to our consistent modular system, the helical gearmotors of the series R..DR.. offer you many combination options. Regardless of the helical gearmotor design you finally decide on: You are always getting an optimum ratio between performance and intelligent use of space. Especially when you are looking for a space-saving drive solution.

    Even at the level of energy efficiency, the gearmotors of the series R..DR... offer you excellent product characteristics. This is particularly true for the AC asynchronous motors of the sophisticated efficiency classes IE3 and IE4. Make use of this high energy efficiency in your applications. The helical gearmotors of the series R..DR...come in either a foot or flange-mounted design making a range of assembly options possible.

    Helical gearmotors


    Make use of the advantages of the compact combination of powerful helical gear units and AC motors. Our helical gearmotors of the series R..DR.. set

    themselves apart with their finely stepped gear unit ratios and variety.

    Energy-efficient: individually configurable helical gear unit with motor

    Helical gearmotors R..DR..
    Helical gearmotors R..DR..

    Save time and money

    By opting for one of our gearmotors, you are already saving time and money with this selection and project planning. This is because our modular system enables a multitude of combination options for gear units and motors. You can therefore reduce operating costs, count on a long service life and benefit from simplified maintenance that is characteristic of our brand.

    Technical data

    Speed 50Hz [r/min]1380 / 38
    Total ratio [i]36,79
    Ma max [Nm]130
    Output torque 50Hz [Nm]94
    Service factor SEW-FB1,40
    Mou. pos. / Pivoting angle [°]M1-M2 / 15
    Motor power [kW]0.37
    Motor frequency [Hz]50
    Cyclic duration factor S1-S10S1
    Voltage range [V]220-242 delta/380-420 star
    Nominal current [A]2,15 / 1,24
    cos phi0,70
    Thermal cl.[°C]/Enclosure[IP]155(F) / 54
    Ambient temperature min. [°C]-20
    Ambient temperature max. [°C]40
    Weight12.00 kg

    FAQ

    Q: Can you print other colors?
    Yes. Customized color can be printed on the gear motor according to your requirements.
    Q: Is that factory price?
    Yes. We assure you all prices are based on factory.
    Q: What is the life span? what is the guarantee
    The lifespan of gear motor can reach 10-20 years depending on different working conditions .The guarantee time is one year after delivery.
    Q: What documents are available?
    A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.
    Q: Is it able to customized?
    yes, we could re-design and produce the gear motor as your requirements if the quantity is large.
